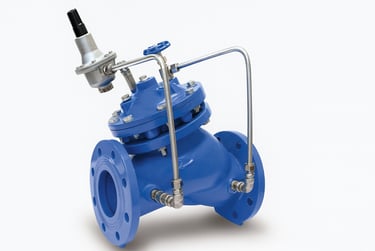

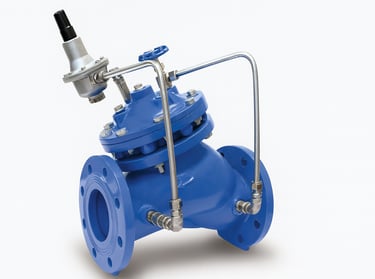

Pegler Ductile iron pressure reducing valve

Model: PRVX4

The Pegler pilot operated pressure reducing valve is a diaphragm-type hydraulic control valve that operates using the pipeline’s own hydraulic pressure as its driving force. It controls the pilot valve through the action of the water itself, thereby reducing the downstream pressure. Regardless of variations in the inlet pressure or changes in the outlet flow, the downstream pressure—both static and dynamic—remains steady at the set value. The outlet pressure can also be adjusted within a specified range.

• working pressure: PN16

• Ductile Iron body

• max. operating temperature: 80°C

• dimensions: DN65 to DN200 (2” to 8”)

• design Standard: CJ/T 219

• connection standard: ISO 1092-2

• surface treatment: epoxy powder coating

Download Pegler prvx4 datasheet

Applications

• potable water

Approvals

• WRAS Approved

• UK water regulation 4
